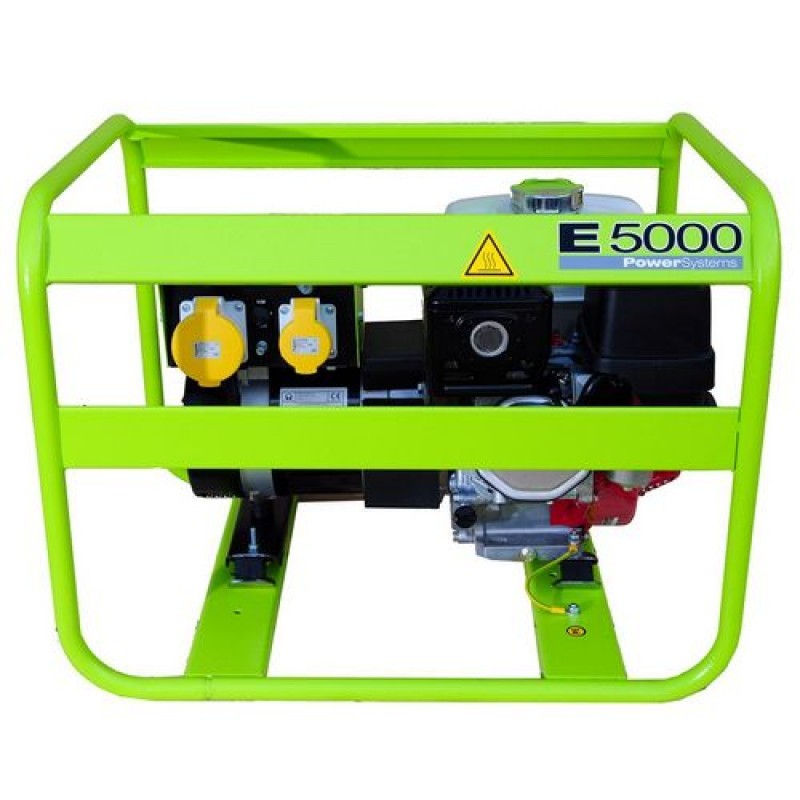

Elektrocentrala E 5000 220V 4,6 KW Honda GX 270

Parametre

Single-phase maximum power (LTP): n.a.
Single-phase maximum power (LTP).: n.a.
Single-phase prime power (PRP): n.a.
Single-phase prime power (PRP).: n.a.
Single-phase continuous power (COP): n.a.
Single-phase continuous power (COP): n.a.
Rated maximum power (LTP): 5,32 kVA
Rated maximum power (LTP): 4,8 kW
Rated prime power (PRP): 4,51 kVA
Rated prime power (PRP): 4,5 kW
Rated continuous power (COP): 4,1 kVA
Rated continuous power (COP): 4,07 kW
Rated current at COP: 17,8 A
Phases: 1
Voltage: 230 V
Rated power factor: 0,9 PF
Frequency: 50 Hz
Battery charger voltage: n.a.
Battery charger current: n.a.
Panel location: On alternator
Frame type: Tubular
Compliancy certification: CE
Engine specifications
Engine manufacturer: Honda
Model: GX270
Stroke: 4
Fuel: Gasoline
Number of cylinders and disposition: 1, inclination angle
Displacement: 270 cm³
Air intake: Natural
Starting system: Recoil
Nominal operating speed: 3000 rpm
Speed governor: Mechanical
Continuous power COP: 4,6 kW
Prime power PRP: 5,1 kW
Standby power LTP: 5,6 kW
Lube oil capacity: 1,1 l
Fuel consumption at 75% load: 1,63 l/h
Electric circuit voltage: n.a.
Alternator specifications
Alternator manufacturer: MeccAlte
Model: S16W 105/A
Poles: 2
Revolution speed: 3000 rpm
Voltage: 230 V
Frequency: 50 Hz
Efficiency at 75% load: 76 %
Maximum admitted overload: 10% for 1 hour every 6 hours of running time S2
Voltage regulation system: Capacitor
Protection grade: IP 23
Additional information
Skid mounting: No
Fuel tank location: On engine
Fuel tank capacity: 6 l
Automatic supplementary tank VV.FF.: No
Running time at 75% COP: 3,68 h
Measured acoustic power (LWA) at 4 mt: 96,5 dBA
Noise level at 7 m: 71,5 dBA
Guaranteed noise level (LWA): 97 dBA
Operating conditions: -15 ~ +40 °C
Dimensional data
Length: 715 mm
Width: 550 mm
Height: 545 mm
Dry weight: 57 kg
