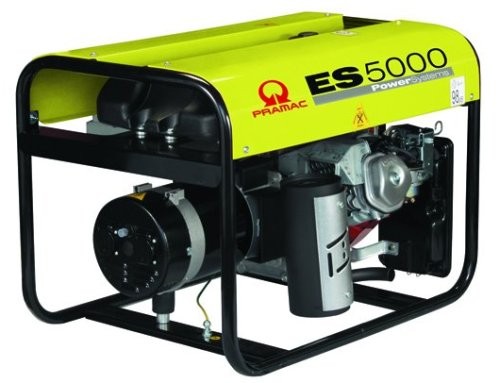

Elektrocentrala ES 5000 220V 4,6 KW Honda GX 270

Parametre

Single-phase maximum power (LTP): n.a.
Single-phase maximum power (LTP).: n.a.
Single-phase prime power (PRP): n.a.
Single-phase prime power (PRP).: n.a.
Single-phase continuous power (COP): n.a.
Single-phase continuous power (COP): n.a.
Rated maximum power (LTP): 5,11 kVA
Rated maximum power (LTP): 4,6 kW
Rated prime power (PRP): 4,62 kVA
Rated prime power (PRP): 4,3 kW
Rated continuous power (COP): 4,2 kVA
Rated continuous power (COP): 3,91 kW
Rated current at COP: 18,3 A
Phases: 1
Voltage: 230 V
Rated power factor: 0,9 PF
Frequency: 50 Hz
Battery charger voltage: n.a.
Battery charger current: n.a.
Panel location: On alternator
Frame type: Tubular, canopied
Compliancy certification: CE
Engine specifications
Engine manufacturer: Honda
Model: GX270
Stroke: 4
Fuel: Gasoline
Number of cylinders and disposition: 1, inclination angle
Displacement: 270 cm³
Air intake: Natural
Starting system: Recoil
Nominal operating speed: 3000 rpm
Speed governor: Mechanical
Continuous power COP: 4,6 kW
Prime power PRP: 5,1 kW
Standby power LTP: 5,6 kW
Lube oil capacity: 1,1 l
Fuel consumption at 75% load: 1,63 l/h
Electric circuit voltage: n.a.
Alternator specifications
Alternator manufacturer: NSM
Model: SE 100 E
Poles: 2
Revolution speed: 3000 rpm
Voltage: 230 V
Frequency: 50 Hz
Efficiency at 75% load: 73,0 %
Maximum admitted overload: 10% for 1 hour every 6 hours of running time S2
Voltage regulation system: Capacitor
Protection grade: IP 23
Additional information
Skid mounting: No
Fuel tank location: On frame
Fuel tank capacity: 11 l
Automatic supplementary tank VV.FF.: No
Running time at 75% COP: 6,74 h
Measured acoustic power (LWA) at 4 mt: 96,3 dBA
Noise level at 7 m: 71,3 dBA
Guaranteed noise level (LWA): 97 dBA
Operating conditions: -15 ~ +40 °C
Dimensional data
Length: 729 mm
Width: 500 mm
Height: 536 mm
Dry weight: 61 kg
