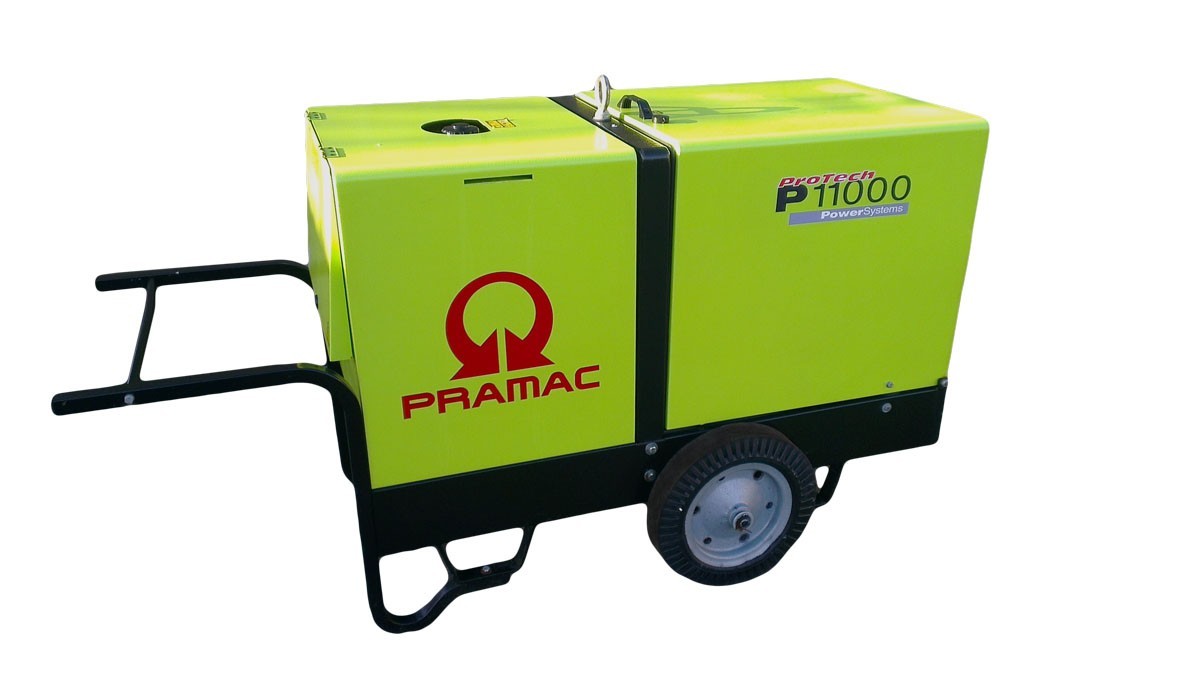

PRAMAC P 11000 230V 11kW Diesel

PRAMAC P 11000 230V 11kW Diesel

Cena: 8769,60€ Cena bez DPH: 7308,00€ Dostupnosť: overiť telefonicky
Overiť telefonicky
Hmotnosť: 325kg
Výrobca: PRAMAC
Standby power LTP: 11 kW Rated prime power (PRP): 10 kW Rated continuous power (COP): 10 kW Phases: 1 Voltage: 230 V Frequency: 50 Hz Engine manufacturer: Yanmar Fuel: Diesel Speed governor: Mechanical

Parametre

Type: Canopied
Standby power LTP: 11 kVA
Standby power LTP: 11 kW
Rated prime power (PRP): 10 kVA
Rated prime power (PRP): 10 kW
Rated continuous power (COP): 10 kVA
Rated continuous power (COP): 10 kW
Phases: 1
Voltage: 230 V
Frequency: 50 Hz
Battery charger current: 40 A
Circuit breaker: 50
Ratio: 0,92
Engine specifications
Engine manufacturer: Yanmar
Model: 3TNV70-CH
Stroke: 4, diesel
Fuel: Diesel
Number of cylinders and disposition: 3, inline
Displacement: 854 cm³
Air intake: Natural
Starting system: Electric
Nominal operating speed: 3000 rpm
Speed governor: Mechanical
SAE: n.a.
Flywheel: n.a.
Continuous power COP: 12,1 kW
Prime power PRP: 13,3 kW
Standby power LTP: 14,6 kW
Lube oil capacity: 3,8 l
Coolant capacity: 0,9 l
Fuel consumption at 100% PRP: 5 l/h
Fuel consumption at 75% PRP: 3 l/h
Maximum lube oil consumption at PRP: n.a.
Electric circuit voltage: 12 V
Engine derating: 1,0
Cooling fan: Mechanical
Alternator specifications
Alternator manufacturer: MeccAlte
Model: S20FS 160/A
Poles: 2
Revolution speed: 3000 rpm
Voltage: 230 V
Frequency: 50 Hz
Continuous nominal power at 40°C - COP: n.a.
Continuous nominal power at 27°C - PRP: 10 kVA
Standby power at 27 °C - LTP: 10,6 kVA
Continuous active power at 27°C - PRP: 10 kW
Efficiency at 75% load: 79,2 %
Efficiency at 100% load: 79,2 %
Maximum admitted overload: 10% for 1 hour every 12 hours of running time S2
Voltage regulation system: Capacitor
Alternator derating: 1,0
Protection grade: IP 21
Additional information
Fuel tank location: Internal
Fuel tank capacity: 24 l
Running time at 100% PRP: 5,22 h
Running time at 75% PRP: 7 h
Measured acoustic power (LWA) at 10 mt: 95,4 dBA
Noise level at 7m: 70,4 dBA
Guaranteed noise level (LWA): 96 dBA
Dimensional data
Length: 1451 mm
Width: 650 mm
Height: 975 mm
Dry weight: 325 kg
