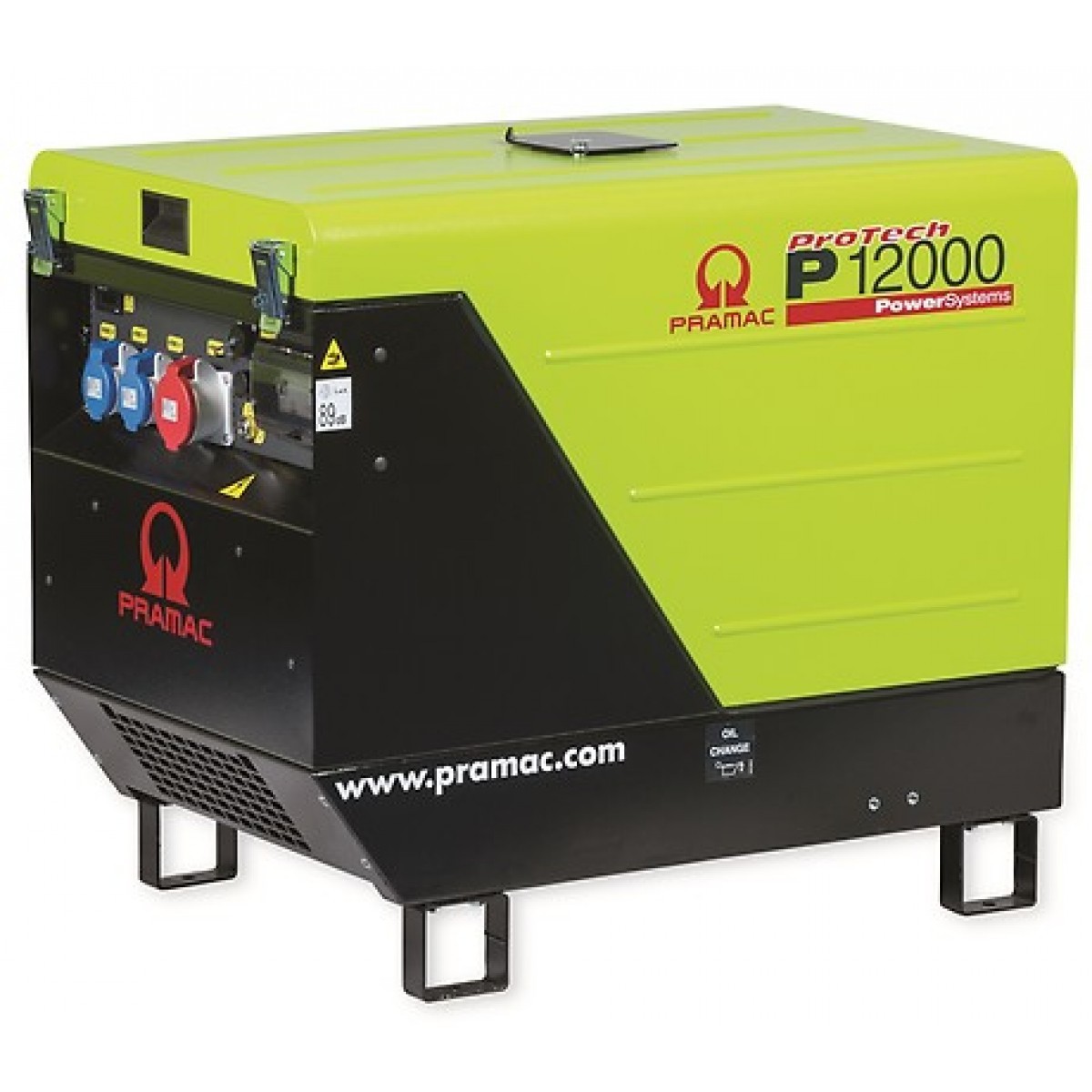

PRAMAC P 12000 3 - fázová Diesel

Parametre

Single-phase maximum power (LTP): 10,42 kVA
Single-phase maximum power (LTP).:9,38 kW
Single-phase prime power (PRP): 4,4 kVA
Single-phase prime power (PRP).: 3,96 kW
Single-phase continuous power (COP): 4 kVA
Single-phase continuous power (COP): 3,6 kW
Rated maximum power (LTP): 15,79 kVA
Rated maximum power (LTP): 12,6 kW
Rated prime power (PRP): 12,1 kVA
Rated prime power (PRP): 9,7 kW
Rated continuous power (COP): 11 kVA
Rated continuous power (COP): 8,8 kW
Rated current at COP: 15,9 A
Phases: 3 Y
Voltage: 230, 400 V
Rated power factor: 0,8 PF
Frequency: 50 Hz
Battery charger voltage: n.a.
Battery charger current: n.a.
Panel location: Canopied
Frame type: Canopied
Compliancy certification: CE
Engine specifications
Engine manufacturer: Hatz
Model: 2 G 40
Stroke: 4
Fuel: Diesel
Number of cylinders and disposition: 2, inline
Displacement: 997 cm³
Air intake: Natural
Starting system: Electric
Nominal operating speed: 3000 rpm
Speed governor: Mechanical
Continuous power COP: 13,1 kW
Prime power PRP: 14,4 kW
Standby power LTP: 15,4 kW
Lube oil capacity: 2,5 l
Fuel consumption at 75% load: 2,25 l/h
Electric circuit voltage: 12 V
Alternator specifications
Alternator manufacturer: Zanardi
Model: AT 118 L12
Poles: 2
Revolution speed: 3000 rpm
Voltage: 400 V
Frequency: 50 Hz
Efficiency at 75% load: 82 %
Maximum admitted overload: 10% for 1 hour every 6 hours of running time S2
Voltage regulation system: Compound
Protection grade: IP 23
Additional information
Skid mounting: Yes
Fuel tank location: On canopy
Fuel tank capacity: 17 l
Automatic supplementary tank VV.FF.: No
Running time at 75% COP: 7,55 h
Measured acoustic power (LWA) at 4 mt: 96,5 dBA
Noise level at 7 m: 71,5 dBA
Guaranteed noise level (LWA): 97 dBA
Operating conditions: -30 ~ +45 °C
Dimensional data
Length: 1270 mm
Width: 830 mm
Height: 920 mm
Dry weight: 275 kg
