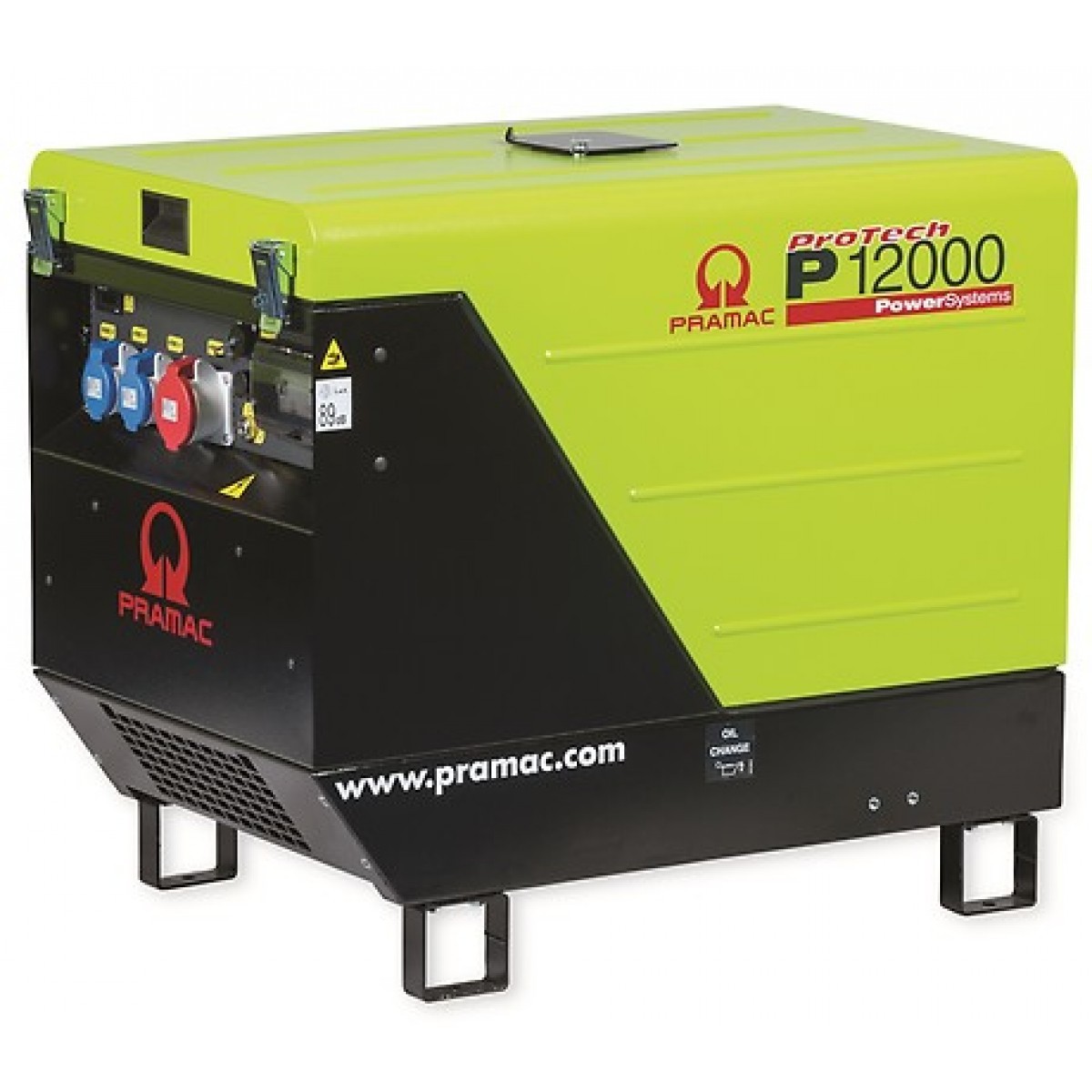

PRAMAC P 12000 230V 1fáza 10,7kW Electric

Parametre

Single-phase maximum power (LTP): n.a.
Single-phase maximum power (LTP).: n.a.
Single-phase prime power (PRP): n.a.
Single-phase prime power (PRP).: n.a.
Single-phase continuous power (COP): n.a.
Single-phase continuous power (COP): n.a.
Rated maximum power (LTP): 11,88 kVA
Rated maximum power (LTP): 10,7 kW
Rated prime power (PRP): 11 kVA
Rated prime power (PRP): 10 kW
Rated continuous power (COP): 10 kVA
Rated continuous power (COP): 9,09 kW
Rated current at COP: 43,5 A
Phases: 1
Voltage: 230 V
Rated power factor: 0,9 PF
Frequency: 50 Hz
Battery charger voltage: n.a.
Battery charger current: n.a.
Panel location: Canopied
Frame type: Canopied
Compliancy certification: CE
Engine specifications
Engine manufacturer: Honda
Model: GX620
Stroke: 4
Fuel: Gasoline
Number of cylinders and disposition: 2, V-form
Displacement: 614 cm³
Air intake: Natural
Starting system Electric
Nominal operating speed: 3000 rpm
Speed governor: Mechanical
Continuous power COP: 10,3 kW
Prime power PRP: 11,3 kW
Standby power LTP: 12,5 kW
Lube oil capacity: 1,8 l
Fuel consumption at 75% load: 3,5 l/h
Electric circuit voltage: 12 V
Alternator specifications
Alternator manufacturer: MeccAlte
Model: S20FS 160/A
Poles: 2
Revolution speed: 3000 rpm
Voltage: 230 V
Frequency: 50 Hz
Efficiency at 75% load: 79,2 %
Maximum admitted overload: 10% for 1 hour every 6 hours of running time S2
Voltage regulation system: Capacitor
Protection grade: IP 23
Additional information
Skid mounting: Yes
Fuel tank location: On canopy
Fuel tank capacity: 24 l
Automatic supplementary tank VV.FF.: No
Running time at 75% COP: 6,86 h
Measured acoustic power (LWA) at 4 mt: 94,9 dBA
Noise level at 7 m: 69,9 dBA
Guaranteed noise level (LWA): 96 dBA
Operating conditions: -15 ~ +40 °C
Dimensional data
Length: 930 mm
Width: 555 mm
Height: 800 mm
Dry weight: 166 kg
