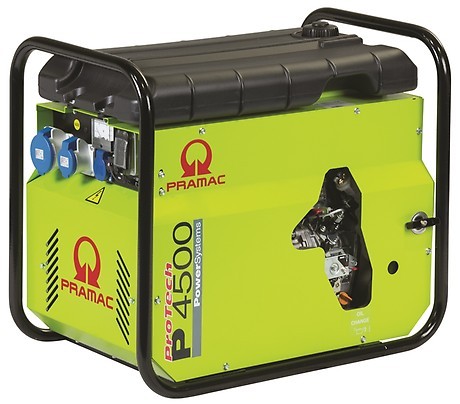

PRAMAC P 4500 Electric

PRAMAC P 4500 Electric

Cena: 4017,60€ Cena bez DPH: 3348,00€ Dostupnosť: overiť telefonicky
Overiť telefonicky
Hmotnosť: 99kg
Výrobca: PRAMAC
Rated maximum power (LTP): 3,6 kW Rated prime power (PRP): 3,4 kW Phases: 1 Voltage: 230 V Frequency: 50 Hz Engine manufacturer: Yanmar Fuel: Diesel Starting system: Electric

Parametre

Single-phase maximum power (LTP): n.a.
Single-phase maximum power (LTP).: n.a.
Single-phase prime power (PRP): n.a.
Single-phase prime power (PRP).: n.a.
Single-phase continuous power (COP): n.a.
Single-phase continuous power (COP): n.a.
Rated maximum power (LTP): 4,05 kVA
Rated maximum power (LTP): 3,6 kW
Rated prime power (PRP): 3,79 kVA
Rated prime power (PRP): 3,4 kW
Rated continuous power (COP): 3,45 kVA
Rated continuous power (COP): 3,1 kW
Rated current at COP: 15 A
Phases: 1
Voltage: 230 V
Rated power factor: 0,9 PF
Frequency: 50 Hz
Battery charger voltage: n.a.
Battery charger current: n.a.
Panel location: Canopied
Frame type: Tubular, canopied
Compliancy certification: CE
Engine specifications
Engine manufacturer: Yanmar
Model: L70AE
Stroke: 4
Fuel: Diesel
Number of cylinders and disposition: 1, vertical
Displacement: 296 cm³
Air intake: Natural
Starting system: Electric
Nominal operating speed: 3000 rpm
Speed governor: Mechanical
Continuous power COP: 4,1 kW
Prime power PRP: 4,5 kW
Standby power LTP: 4,8 kW
Lube oil capacity: 1,1 l
Fuel consumption at 75% load: 0,99 l/h
Electric circuit voltage: 12 V
Alternator specifications
Alternator manufacturer: MeccAlte
Model: S16W 105/A
Poles: 2
Revolution speed: 3000 rpm
Voltage: 230 V
Frequency: 50 Hz
Efficiency at 75% load: 76 %
Maximum admitted overload: 10% for 1 hour every 6 hours of running time S2
Voltage regulation system: Capacitor
Protection grade: IP 23
Additional information
Skid mounting: No
Fuel tank location: On canopy
Fuel tank capacity: 18 l
Automatic supplementary tank VV.FF.: No
Running time at 75% COP: 18,17 h
Measured acoustic power (LWA) at 4 mt: 95,8 dBA
Noise level at 7 m: 70,8 dBA
Guaranteed noise level (LWA): 96 dBA
Operating conditions: 0 ~ +40 °C
Dimensional data
Length: 800 mm
Width: 520 mm
Height: 660 mm
Dry weight: 99 kg
