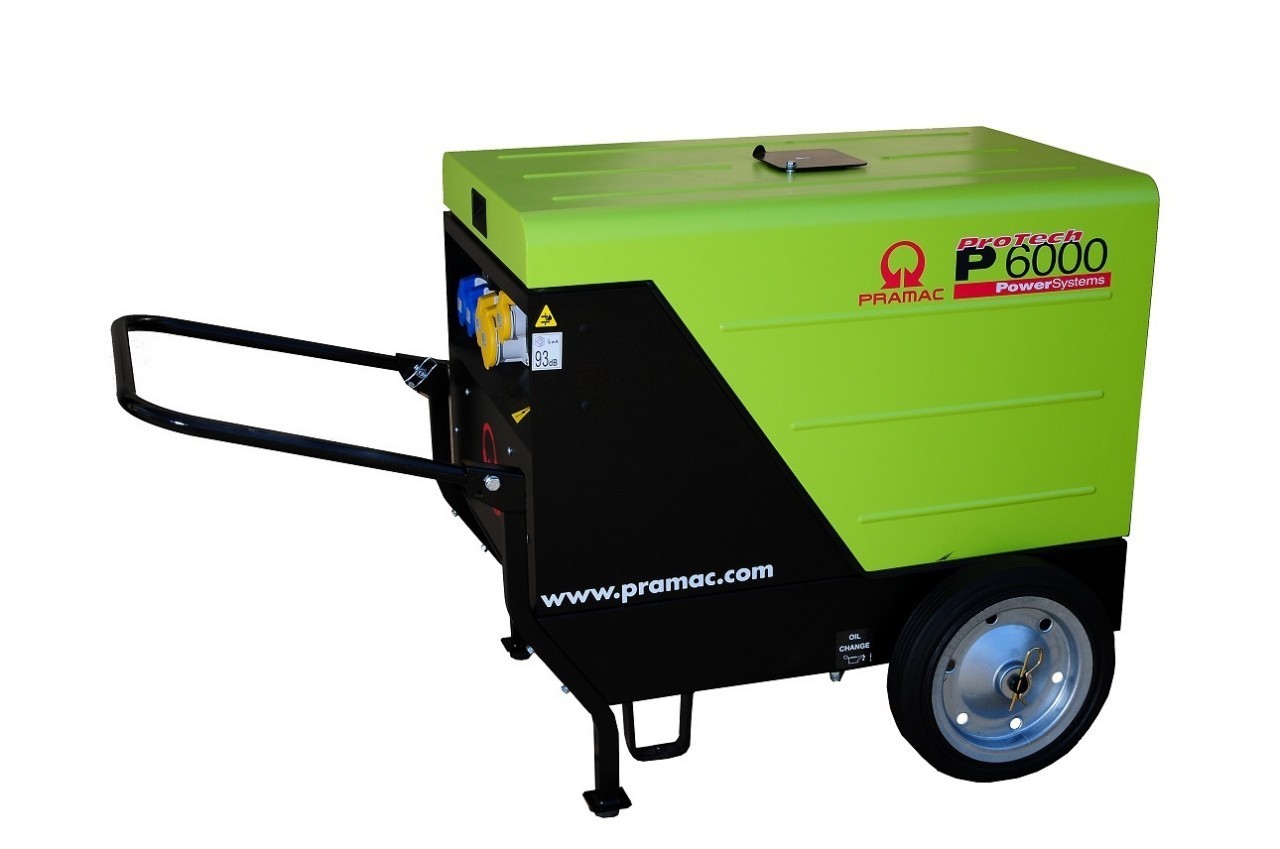

PRAMAC P 6000 230,400V 3fázy 5,5kW Electric

PRAMAC P 6000 230,400V 3fázy 5,5kW Electric

Cena: 4668,00€ Cena bez DPH: 4668,00€ Dostupnosť: overiť telefonicky
Overiť telefonicky
Hmotnosť: 149kg
Výrobca: PRAMAC
Rated maximum power (LTP): 5,5 kW Rated prime power (PRP): 5,1 kW Phases: 3 Y Voltage: 230, 400 V Frequency: 50 Hz Engine manufacturer: Yanmar Fuel: Diesel Starting system: Electric

Parametre

Single-phase maximum power (LTP): 4,53 kVA
Single-phase maximum power (LTP).: 4,07 kW
Single-phase prime power (PRP): 2,2 kVA
Single-phase prime power (PRP).: 1,98 kW
Single-phase continuous power (COP): 2 kVA
Single-phase continuous power (COP): 1,8 kW
Rated maximum power (LTP): 6,86 kVA
Rated maximum power (LTP): 5,5 kW
Rated prime power (PRP): 6,43 kVA
Rated prime power (PRP): 5,1 kW
Rated continuous power (COP): 5,62 kVA
Rated continuous power (COP): 4,5 kW
Rated current at COP: 8,1 A
Phases: 3 Y
Voltage: 230, 400 V
Rated power factor: 0,8 PF
Frequency: 50 Hz
Battery charger voltage: n.a.
Battery charger current: n.a.
Panel location: Canopied
Frame type: Canopied
Compliancy certification: CE
Engine specifications
Engine manufacturer: Yanmar
Model: L100AE
Stroke: 4
Fuel: Diesel
Number of cylinders and disposition: 1, vertical
Displacement: 406 cm³
Air intake: Natural
Starting system: Electric
Nominal operating speed: 3000 rpm
Speed governor: Mechanical
Continuous power COP: 5,7 kW
Prime power PRP: 6,5 kW
Standby power LTP: 6,9 kW
Lube oil capacity: 1,65 l
Fuel consumption at 75% load: 1,37 l/h
Electric circuit voltage: 12 V
Alternator specifications
Alternator manufacturer: MeccAlte
Model: T16F 130/A
Poles: 2
Revolution speed: 3000 rpm
Voltage: 400 V
Frequency: 50 Hz
Efficiency at 75% load: 79,5 %
Maximum admitted overload: 10% for 1 hour every 6 hours of running time S2
Voltage regulation system: Compound
Protection grade: IP 23
Additional information
Skid mounting: Yes
Fuel tank location: On canopy
Fuel tank capacity: 24 l
Automatic supplementary tank VV.FF.: No
Running time at 75% COP: 17,46 h
Measured acoustic power (LWA) at 4 mt: 96,5 dBA
Noise level at 7 m: 71,5 dBA
Guaranteed noise level (LWA): 97 dBA
Operating conditions: 0 ~ +40 °C
Dimensional data
Length: 930 mm
Width: 555 mm
Height: 800 mm
Dry weight: 149 kg
