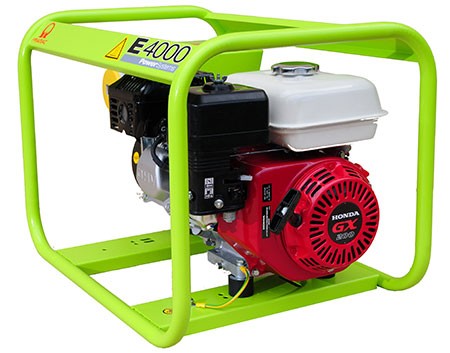

PRAMAC E 4000

Parametre

Single-phase maximum power (LTP): n.a.
Single-phase maximum power (LTP).: n.a.
Single-phase prime power (PRP): n.a.
Single-phase prime power (PRP).: n.a.
Single-phase continuous power (COP): n.a.
Single-phase continuous power (COP): n.a.
Rated maximum power (LTP): 3,58 kVA
Rated maximum power (LTP): 3,2 kW
Rated prime power (PRP): 3,35 kVA
Rated prime power (PRP): 3 kW
Rated continuous power (COP): 3,05 kVA
Rated continuous power (COP): 2,74 kW
Rated current at COP: 13,2 A
Phases: 1
Voltage: 230 V
Rated power factor: 0,9 PF
Frequency: 50 Hz
Battery charger voltage: n.a.
Battery charger current: n.a.
Panel location: On alternator
Frame type: Tubular
Compliancy certification: CE
Engine specifications
Engine manufacturer: Honda
Model: GX200
Stroke: 4
Fuel: Gasoline
Number of cylinders and disposition: 1, inclination angle
Displacement: 196 cm³
Air intake: Natural
Starting system: Recoil
Nominal operating speed: 3000 rpm
Speed governor: Mechanical
Continuous power COP: 3,3 kW
Prime power PRP: 3,6 kW
Standby power LTP: 3,8 kW
Lube oil capacity: 0,6 l
Fuel consumption at 75% load: 1,11 l/h
Electric circuit voltage: n.a.
Alternator specifications
Alternator manufacturer: MeccAlte
Model: S16W 90/A
Poles: 2
Revolution speed: 3000 rpm
Voltage: 230 V
Frequency: 50 Hz
Efficiency at 75% load: 75 %
Maximum admitted overload: 10% for 1 hour every 6 hours of running time S2
Voltage regulation system: Capacitor
Protection grade: IP 23
Additional information
Skid mounting: No
Fuel tank location: On engine
Fuel tank capacity: 3,6 l
Automatic supplementary tank VV.FF.: No
Running time at 75% COP: 3,23 h
Measured acoustic power (LWA) at 4 mt: 95,7 dBA
Noise level at 7 m: 70,7 dBA
Guaranteed noise level (LWA): 96 dBA
Operating conditions: -15 ~ +40 °C
Dimensional data
Length: 625 mm
Width: 455 mm
Height: 455 mm
Dry weight: 39 kg
