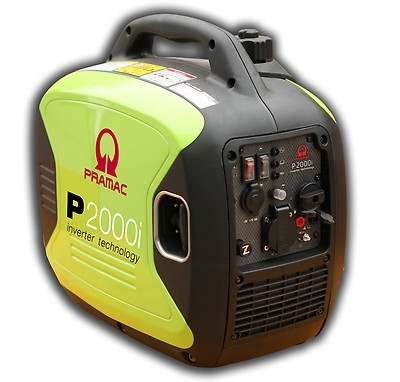

PRAMAC P 2000i Inverter

PRAMAC P 2000i Inverter

Cena: 1092,00€ Cena bez DPH: 910,00€ Dostupnosť: skladom do 3 prac. dní
Kód produktu: #23001.01
Overiť telefonicky
Hmotnosť: 21kg
Výrobca: PRAMAC
Rated maximum power (LTP): 1,6 kW Rated prime power (PRP): 1,6 kW Phases: 1 Voltage: 230 V Frequency: 50 Hz Engine manufacturer: Robin Fuel: Gasoline Starting system: Recoil

Parametre

Single-phase maximum power (LTP): n.a.
Single-phase maximum power (LTP).: n.a.
Single-phase prime power (PRP): n.a.
Single-phase prime power (PRP).: n.a.
Single-phase continuous power (COP): n.a.
Single-phase continuous power (COP): n.a.
Rated maximum power (LTP): 1,65 kVA
Rated maximum power (LTP): 1,6 kW
Rated prime power (PRP): 1,65 kVA
Rated prime power (PRP): 1,6 kW
Rated continuous power (COP): 1,35 kVA
Rated continuous power (COP): 1,35 kW
Rated current at COP: 5,9 A
Phases: 1
Voltage: 230 V
Rated power factor: 1,0 PF
Frequency: 50 Hz
Battery charger voltage: 12 V
Battery charger current: 8,3 A
Panel location: Canopied
Frame type: Canopied
Compliancy certification: CE
Engine specifications
Engine manufacturer: Robin
Model: EH09-2
Stroke: 4
Fuel: Gasoline
Number of cylinders and disposition: 1, vertical
Displacement: 85,8 cm³
Air intake: Natural
Starting system: Recoil
Nominal operating speed: 4200 rpm
Speed governor: Electronic
Continuous power COP: 1,7 kW
Prime power PRP: 1,8 kW
Standby power LTP: 2,1 kW
Lube oil capacity: 0,4 l
Fuel consumption at 75% load: 0,58 l/h
Electric circuit voltage: n.a.
Alternator specifications
Alternator manufacturer: Robin
Model: n.a.
Poles: 16
Revolution speed: n.a.
Voltage: 230 V
Frequency: 50 Hz
Efficiency at 75% load: 70 %
Maximum admitted overload: 10% for 1 hour every 6 hours of running time S2
Voltage regulation system: Inverter
Protection grade: IP 23
Additional information
Skid mounting: No
Fuel tank location: On canopy
Fuel tank capacity: 3,5 l
Automatic supplementary tank VV.FF.: No
Running time at 75% COP: 6,01 h
Measured acoustic power (LWA) at 4 mt: 89,6 dBA
Noise level at 7 m: 59 dBA
Guaranteed noise level (LWA): 91 dBA
Operating conditions: -15 ~ +40 °C
Dimensional data
Length: 490 mm
Width: 295 mm
Height: 445 mm
Dry weight: 21 kg
