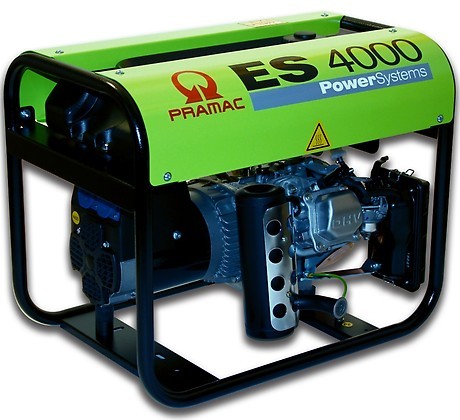

PRAMAC ES 4000

PRAMAC ES 4000

Cena: 1284,00€ Cena bez DPH: 1070,00€ Dostupnosť: skladom do 3 prac. dní
Kód produktu: #23005.02
Overiť telefonicky
Hmotnosť: 43kg
Výrobca: PRAMAC
Rated maximum power (LTP): 3 kW Rated prime power (PRP): 2,8 kW Phases: 1 Voltage: 230 V Frequency: 50 Hz Engine manufacturer: Honda Fuel: Gasoline Starting system: Recoil

Parametre

Single-phase maximum power (LTP): n.a.
Single-phase maximum power (LTP).: n.a.
Single-phase prime power (PRP): n.a.
Single-phase prime power (PRP).: n.a.
Single-phase continuous power (COP): n.a.
Single-phase continuous power (COP): n.a.
Rated maximum power (LTP): 3,39 kVA
Rated maximum power (LTP): 3 kW
Rated prime power (PRP): 3,17 kVA
Rated prime power (PRP): 2,8 kW
Rated continuous power (COP): 2,88 kVA
Rated continuous power (COP): 2,6 kW
Rated current at COP: 12,5 A
Phases: 1
Voltage: 230 V
Rated power factor: 0,9 PF
Frequency: 50 Hz
Battery charger voltage: n.a.
Battery charger current: n.a.
Panel location: On alternator
Frame type: Tubular, canopied
Compliancy certification: CE
Engine specifications
Engine manufacturer: Honda
Model: GX200
Stroke: 4
Fuel: Gasoline
Number of cylinders and disposition: 1, inclination angle
Displacement: 196 cm³
Air intake: Natural
Starting system: Recoil
Nominal operating speed: 3000 rpm
Speed governor: Mechanical
Continuous power COP: 3,3 kW
Prime power PRP: 3,6 kW
Standby power LTP: 3,8 kW
Lube oil capacity: 0,6 l
Fuel consumption at 75% load: 1,11 l/h
Electric circuit voltage: n.a.
Alternator specifications
Alternator manufacturer: NSM
Model: ES 80 E
Poles: 2
Revolution speed: 3000 rpm
Voltage: 230 V
Frequency: 50 Hz
Efficiency at 75% load: 71 %
Maximum admitted overload: 10% for 1 hour every 6 hours of running time S2
Voltage regulation system: Capacitor
Protection grade: IP 23
Additional information
Skid mounting: No
Fuel tank location: On frame
Fuel tank capacity: 11 l
Automatic supplementary tank VV.FF.: No
Running time at 75% COP: 9,87 h
Measured acoustic power (LWA) at 4 mt: 94 dBA
Noise level at 7 m: 69 dBA
Guaranteed noise level (LWA): 95 dBA
Operating conditions: -15 ~ +40 °C
Dimensional data
Length: 623 mm
Width: 409 mm
Height: 500 mm
Dry weight: 43 kg
