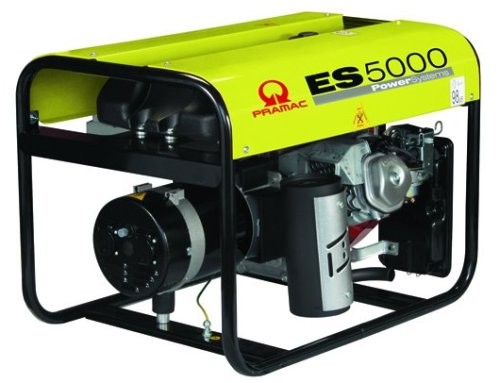

PRAMAC ES 5000 230,400V 5kW

PRAMAC ES 5000 230,400V 5kW

Cena: 2184,00€ Cena bez DPH: 1820,00€ Dostupnosť: skladom
Kód produktu: #23007
ks
Hmotnosť: 75kg
Výrobca: PRAMAC
Rated maximum power (LTP): 5 kW Rated prime power (PRP): 4,7 kW Phases: 3 Y Voltage: 230, 400 V Frequency: 50 Hz Engine manufacturer: Honda Fuel: Gasoline Starting system: Recoil

Parametre

Single-phase maximum power (LTP): 4,16 kVA
Single-phase maximum power (LTP).: 3,74 kW
Single-phase prime power (PRP): 3,46 kVA
Single-phase prime power (PRP).: 3,11 kW
Single-phase continuous power (COP): 3,14 kVA
Single-phase continuous power (COP): 2,83 kW
Rated maximum power (LTP): 6,3 kVA
Rated maximum power (LTP): 5 kW
Rated prime power (PRP): 5,89 kVA
Rated prime power (PRP): 4,7 kW
Rated continuous power (COP): 5,36 kVA
Rated continuous power (COP): 4,28 kW
Rated current at COP: 7,7 A
Phases: 3 Y
Voltage: 230, 400 V
Rated power factor: 0,8 PF
Frequency: 50 Hz
Battery charger voltage: n.a.
Battery charger current: n.a.
Panel location: On alternator
Frame type: Tubular, canopied
Compliancy certification: CE
Engine specifications
Engine manufacturer: Honda
Model: GX270
Stroke: 4
Fuel: Gasoline
Number of cylinders and disposition: 1, inclination angle
Displacement: 270 cm³
Air intake: Natural
Starting system: Recoil
Nominal operating speed: 3000 rpm
Speed governor: Mechanical
Continuous power COP: 4,6 kW
Prime power PRP: 5,1 kW
Standby power LTP: 5,6 kW
Lube oil capacity: 1,1 l
Fuel consumption at 75% load: 1,63 l/h
Electric circuit voltage: n.a.
Alternator specifications
Alternator manufacturer: NSM
Model: T100SC
Poles: 2
Revolution speed: 3000 rpm
Voltage: 400 V
Frequency: 50 Hz
Efficiency at 75% load: 80 %
Maximum admitted overload: 10% for 1 hour every 6 hours of running time S2
Voltage regulation system: Compound
Protection grade: IP 23
Additional information
Skid mounting: No
Fuel tank location: On frame
Fuel tank capacity: 11 l
Automatic supplementary tank VV.FF.: No
Running time at 75% COP: 6,74 h
Measured acoustic power (LWA) at 4 mt: 96,3 dBA
Noise level at 7 m: 71,3 dBA
Guaranteed noise level (LWA): 97 dBA
Operating conditions: -15 ~ +40 °C
Dimensional data
Length: 729 mm
Width: 500 mm
Height: 536 mm
Dry weight: 75 kg
