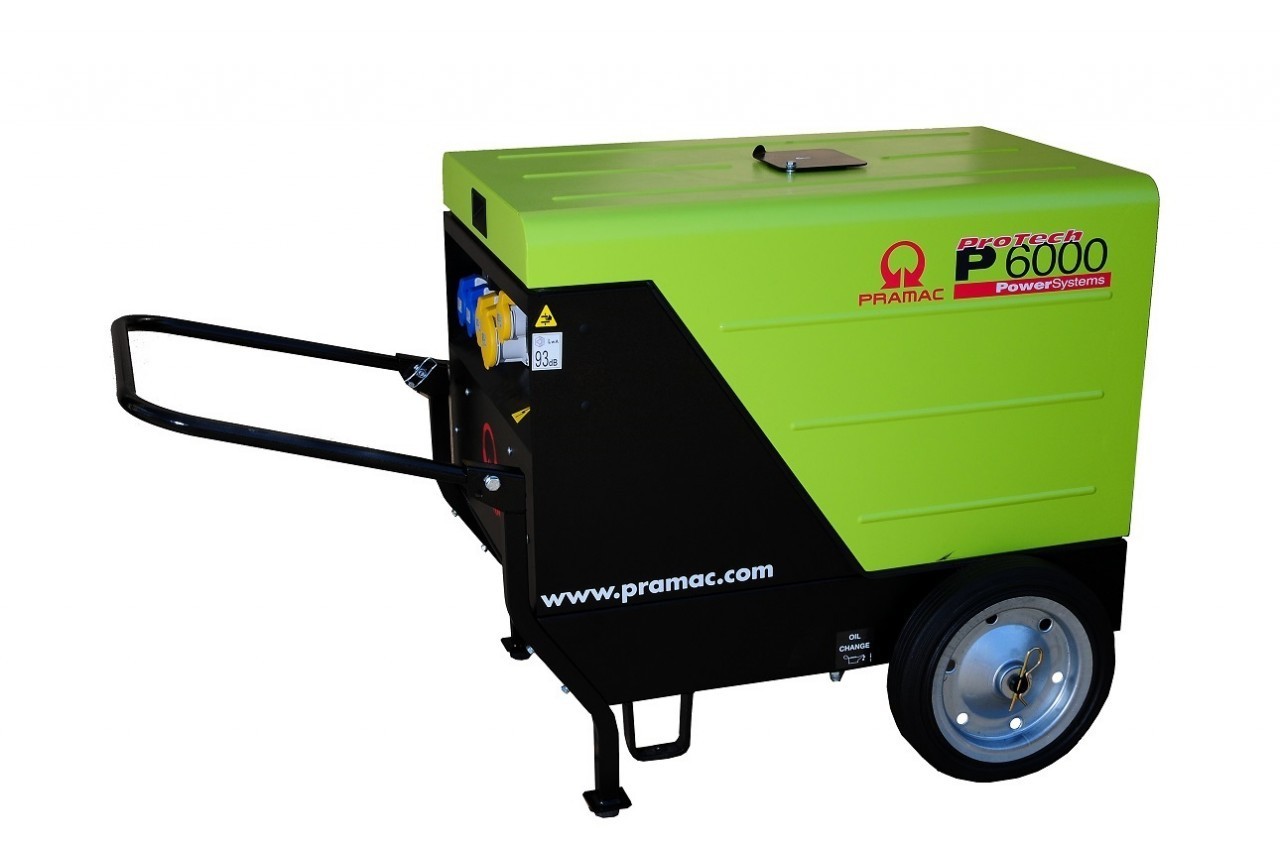

PRAMAC P 6000 230V 1fáza 5,3kW Electric

Parametre

Single-phase maximum power (LTP): n.a.
Single-phase maximum power (LTP).: n.a.
Single-phase prime power (PRP): n.a.
Single-phase prime power (PRP).: n.a.
Single-phase continuous power (COP): n.a.
Single-phase continuous power (COP): n.a.
Rated maximum power (LTP): 5,9 kVA
Rated maximum power (LTP): 5,3 kW
Rated prime power (PRP): 5,5 kVA
Rated prime power (PRP): 5 kW
Rated continuous power (COP): 4,84 kVA
Rated continuous power (COP): 4,36 kW
Rated current at COP: 21,1 A
Phases: 1
Voltage: 230 V
Rated power factor: 0,9 PF
Frequency: 50 Hz
Battery charger voltage: n.a.
Battery charger current: n.a.
Panel location: Canopied
Frame type: Canopied
Compliancy certification: CE
Engine specifications
Engine manufacturer: Yanmar
Model: L100AE
Stroke: 4
Fuel: Diesel
Number of cylinders and disposition: 1, vertical
Displacement: 406 cm³
Air intake: Natural
Starting system: Electric
Nominal operating speed: 3000 rpm
Speed governor: Mechanical
Continuous power COP: 5,7 kW
Prime power PRP: 6,5 kW
Standby power LTP: 6,9 kW
Lube oil capacity: 1,65 l
Fuel consumption at 75% load: 1,37 l/h
Electric circuit voltage: 12 V
Alternator specifications
Alternator manufacturer: MeccAlte
Model: S16W 130/A
Poles: 2
Revolution speed: 3000 rpm
Voltage: 230 V
Frequency: 50 Hz
Efficiency at 75% load: 77 %
Maximum admitted overload: 10% for 1 hour every 6 hours of running time S2
Voltage regulation system: Capacitor
Protection grade: IP 23
Additional information
Skid mounting: Yes
Fuel tank location: On canopy
Fuel tank capacity: 24 l
Automatic supplementary tank VV.FF.: No
Running time at 75% COP: 17,46 h
Measured acoustic power (LWA) at 4 mt: 96,5 dBA
Noise level at 7 m: 71,5 dBA
Guaranteed noise level (LWA): 97 dBA
Operating conditions: 0 ~ +40 °C
Dimensional data
Length: 930 mm
Width: 555 mm
Height: 800 mm
Dry weight: 143 kg
