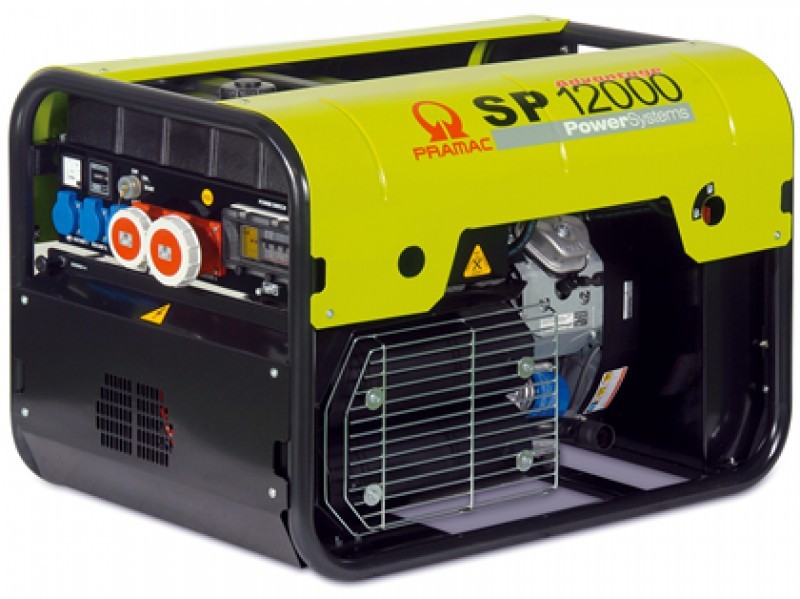

PRAMAC SP 12000

Parametre

Single-phase maximum power (LTP): 9,13 kVA
Single-phase maximum power (LTP).: 8,22 kW
Single-phase prime power (PRP): 7,59 kVA
Single-phase prime power (PRP).: 6,83 kW
Single-phase continuous power (COP): 6,9 kVA
Single-phase continuous power (COP): 6,21 kW
Rated maximum power (LTP): 13,84 kVA
Rated maximum power (LTP): 11 kW
Rated prime power (PRP): 12,94 kVA
Rated prime power (PRP): 10,3 kW
Rated continuous power (COP): 11,76 kVA
Rated continuous power (COP): 9,41 kW
Rated current at COP: 17 A
Phases: 3 Y
Voltage: 230, 400 V
Rated power factor: 0,8 PF
Frequency: 50 Hz
Battery charger voltage: n.a.
Battery charger current: n.a.
Panel location: On frame
Frame type: Tubular, canopied
Compliancy certification: CE
Engine specifications
Engine manufacturer: Honda
Model: GX620
Stroke: 4
Fuel: Gasoline
Number of cylinders and disposition: 2, V-form
Displacement: 614 cm³
Air intake: Natural
Starting system: Electric
Nominal operating speed: 3000 rpm
Speed governor: Mechanical
Continuous power COP: 10,3 kW
Prime power PRP: 11,3 kW
Standby power LTP: 12,5 kW
Lube oil capacity: 1,8 l
Fuel consumption at 75% load: 3,5 l/h
Electric circuit voltage: 12 V
Alternator specifications
Alternator manufacturer: GTS
Model: DWG 12.5/6.0 EE
Poles: 2
Revolution speed: 3000 rpm
Voltage: 400 V
Frequency: 50 Hz
Efficiency at 75% load: 82 %
Maximum admitted overload: 10% for 1 hour every 6 hours of running time S2
Voltage regulation system: Electronic
Protection grade: IP 54
Additional information
Skid mounting: No
Fuel tank location: On frame
Fuel tank capacity: 24 l
Automatic supplementary tank VV.FF.: No
Running time at 75% COP: 6,86 h
Measured acoustic power (LWA) at 4 mt: 95,1 dBA
Noise level at 7 m: 70,1 dBA
Guaranteed noise level (LWA): 96 dBA
Operating conditions: -15 ~ +40 °C
Dimensional data
Length: 960 mm
Width: 641 mm
Height: 667 mm
Dry weight: 170 kg
